This enables precise spatial modeling of body parts and their topological relationships.

modeling¶

Dentition

molars¶

Let assume molar it looks like cube divided into thirds as 3x3x3

incisors¶

Let assume incisior as right angled prism triangle

Anatomical Landmarks

Molar Geometry

Incisor Geometry

scatter plot location

applications¶

You can simulate decay progression (geometry erosion)
Predict stress points (using physics formulas)
Simulate treatments: cavity prep, crown fit, etc.
Use coordinate systems to locate caries, fractures, fillings

Step 2: Spatial Anchoring (Coordinate Assignment)¶

Objective: Assign 3D coordinates (x, y, z) to each anatomical structure. Method: coordinate geometry This provides the foundation for tracking anatomical states and disease propagation over time (t).

Understood! Here’s your original anatomical coordinate system with gingiva (200-series) explicitly mapped around the tooth, keeping the pulp as (0,0,0) and tissue codes intact:

Tissue Encoding (Your Original System)¶

Code	Tissue	Relative to Tooth
`000`	Pulp	Core (0,0,0)
`001`	Enamel	Outer crown
`200`	Gingiva	Surrounding soft tissue
`201`	Marginal Gingiva	Gum line (cervical)
`202`	Lateral PDL	Periodontal ligament (root)
`002`	Apical PDL	Periodontal ligament (root)
`203`	Alveolar Bone	Socket bone (apical/lateral)

Tooth/tooth number (100-Series)¶

4 sides enamel = mesial,distal and lingual,labial

Gingiva (200-Series)¶

4 sides gingiva = mesial,distal and lingual,labial

Gingiva wraps around the tooth — use negative/positive coordinates to define proximity:

Buccal Gingiva (Cheek Side):
** - Coordinate**: (X, Y=cervical, Z=+buccal)
** - Code**: 200 (general) or 201 (marginal)
Lingual Gingiva (Tongue Side):
** - Coordinate**: (X, Y=cervical, Z=−lingual)
** - Code**: 200
Interproximal Gingiva (Between Teeth):
** - Mesial**: (X=+mesial, Y=cervical, Z)
** - Distal**: (X=−distal, Y=cervical, Z)
** - Code**: 201 (cervical margin)
Apical Gingiva (Root-Level):
** - Coordinate**: (X, Y=−apical, Z) (near bone)
** - Code**: 200 (attached gingiva)

example¶

Buccal Marginal Gingiva:
(0, +2, +3) → 201 (2mm occlusal, 3mm buccal from pulp)
Lingual Attached Gingiva (Root-Level):
(0, −4, −2) → 200 (4mm apical, 2mm lingual)

Transformation and Orientation seen in [orthodontic] section by time¶

(x,y,z,t)

Step 3: Cross-System Mapping (Coordinate System Translation)¶

Objective: Integrate multiple anatomical systems (e.g., neural, circulatory, skeletal) within a unified spatial framework. Method: Multisystem Coordinate Integration Helps analyze diseases that cross anatomical domains

graph

Captures how structures are connected rather than their exact shape:

Periradicular region connected by gingiva and pulp through apical foramen

enamel(A) pulp(B) apical pdl(C) marginal gingiva(D) lateral pdl (pocket peridontitis(E)) pulp(B)

enamel location 1 or enamel location 2 or ..enamel location 26 -> pulp > apical pdl

marginal gingiva -> lateral pdl -> pulp

enamel consists of 26 points.it at localized and don't spread unlike caries.so A1,A2,A3

list representation of graph

directional graphs

Lattice Theory Representation

We define a lattice based on causality:

Partial Order Definitions

Let:

Aᵢ = Enamel location i (where i ∈ [1..26])

B = Pulp

C = Apical PDL

D = Marginal Gingiva

E = Lateral PDL

Define the partial orders:

∀i ∈ [1..26], Aᵢ ≤ B (Enamel contributes to pulp lesion) E ≤ B (Periodontitis leads to pulp involvement) B ≤ C (Pulp infection leads to apical lesion) D ≤ E (Gingiva precedes lateral PDL disease)

✅ Join and Meet (∨ and ∧)

If disease spreads through multiple sources, we can define:

∨ (join): common consequence

∧ (meet): common cause

Examples:

A1 ∨ A2 ∨ ... ∨ A26 = B (All enamel lesions converge at pulp)

E ∨ Aᵢ = B (Both lateral PDL and enamel can lead to pulp issues)

B ∨ D = B (since D leads indirectly to B)

Step 4: Establish homeostasis Function (control system theory)¶

Dental Structures as Control Systems

Nodes

enamel as actuator¶

In order to model the enamel actuator using state-space representation, we first need to define the system's state variables, inputs, and outputs. Here, the enamel is the system, and we are interested in how it responds to different inputs (like mechanical load, occlusal stress, acid exposure, and bacterial biofilm), which lead to different outcomes (like crack propagation, fatigue failure, demineralization, and localized decay).

State Variables¶

Let's represent the state of enamel as a vector that describes its condition at any given time. We can consider the following state variables: - Condition of enamel (structural integrity, crack development, mineral content).

Mineralization level (degree of demineralization or remineralization).

These state variables will evolve over time as a function of the input factors.

Types of input¶

Based on the provided table, the inputs could be modeled as follows:

Mechanical load: This could be a step input representing a sudden change in the force applied on the enamel (e.g., biting down hard).

= Step input (sudden mechanical load).

Occlusal stress: This could be a sinusoidal input representing a cyclic load, such as that seen in bruxism (teeth grinding).

= Sinusoidal input (cyclic occlusal stress).

Acid exposure: A gradual increase in acidity over time, typically caused by soda consumption, leading to demineralization.

= Ramp input (acid exposure).

Bacterial biofilm: Random or stochastic noise, which could simulate the presence of bacterial activity that leads to localized decay.

= Noise input (bacterial biofilm).

You're doing an excellent job of building the state-space model! Here's a polished and more mathematically complete version of what you wrote, to help you go even deeper:

Enamel Damage Conditions and Corresponding Input Types¶

Dental Condition	Cause	Input Type
Fracture	Sudden mechanical load	Impulse(fracture ) / Step (crack)
Attrition	Bruxism (grinding)	Sinusoidal (cyclic)
Erosion	Acid over time	Ramp / Sustained input
Caries	Bacterial biofilm	Random / Noise
Abrasion	Overbrushing / objects	Square / Pulsed
Abfraction	Non-axial repetitive stress	Sawtooth

Assumptions:

Input (u(t)): Daily soda intake in mL. Let's say 250 mL/day.
State variable (x(t)): Degree of demineralization (ranges from 0 to 1).
Output (y(t)): Visible erosion (becomes noticeable when x(t) > 0.6).
Demineralization rate constant (a): how fast enamel weakens due to acid.

Clinical research shows that enamel starts showing signs of visible erosion when about 40–60% of its minerals are lost.

State-Space Equation (Simplified 1^st order): $\(\frac{dx(t)}{dt} \propto u(t)$\)

\[ \frac{dx(t)}{dt} = a \cdot u(t) \]

The input u(t) represents acid exposure over time, modeled as a ramp function:

$u(t) = \gamma t$

where: - $\gamma$ is the rate of acid exposure increase (slope of the ramp)

x(t) is cumulative enamel demineralization
a is sensitivity to acid, let's say a = 0.0016 per mL (based on literature approximations)
u(t) = 250 mL/day

Now calculate:

\[ \frac{dx(t)}{dt} = 0.0016 \cdot 250 = 0.4 \text{ per day} \]

Then integrate over time:

x(t) = 0.4t

We define:

Erosion becomes clinically visible when x(t) > 0.6

So solve:

\[ 0.4t = 0.6 \Rightarrow t = \frac{0.6}{0.4} = 1.5 \text{ days} \]

Interpretation:

If someone drinks 250 mL of soda every day, visible signs of erosion could begin within 1.5 days under continuous acid exposure without saliva protection or remineralization.

BUT! In Real Life:

Saliva buffers acid and repairs enamel (remineralization).

Brushing, fluoride, and diet reduce actual damage.

So realistically, visible erosion may take months or years of repeated daily exposure.

More Realistic Model (with remineralization):

\[ \frac{dx(t)}{dt} = a \cdot u(t) - b \cdot x(t) \]

Where:

b: rate of natural enamel recovery (e.g., remineralization, say b = 0.05)

Now it's a differential equation with decay (natural healing)

See here - b.x because decrease the demineralization

Let's now define a state-space model with feedback for acid exposure leading to enamel erosion, including remineralization as negative feedback.

Objective:

Model how continuous soda intake leads to visible enamel erosion, considering that the body (saliva, fluoride) tries to remineralize the enamel (negative feedback loop).

System Components: Input: = Acid exposure (e.g., 250 mL/day of soda)

State Variable: = Degree of demineralization (from 0 to 1)

Output: (we observe demineralization directly as erosion)

Feedback: Remineralization is proportional to current damage , i.e., more damage → more repair effort Feedback gain =

Final State Equation with Feedback:

\[ \frac{dx(t)}{dt} = a \cdot u(t) - b \cdot x(t) \]

Where:

= rate of acid-induced demineralization (e.g., 0.0016 per mL)

= soda intake per day (250 mL constant)

= remineralization rate (e.g., 0.05 per day)

\[ \frac{dx(t)}{dt} = (0.0016 \cdot 250) - 0.05x(t) \Rightarrow \frac{dx(t)}{dt} = 0.4 - 0.05x(t) \]

Feedback Summary:

Acid demineralizes (positive input)

Saliva repairs (negative feedback)

The equation balances both to give real enamel response over time

So

Small Concrete Example: Enamel under Acid Attack¶

Let's say:

x(t) = % Mineralization of Enamel (ideal = 1.0)
u(t) = acid concentration
y(t) = clinical demineralization (white spot visible)

Assume: $A = -0.05 \quad (natural slow demineralization)$

$B = -0.2 \quad (acid accelerates loss)$ $C = 1 \quad (you see clinical change when enamel drops)$$D = 0 \quad (no direct symptom from acid without damage)$

Then: $\dot{x}(t) = -0.05x(t) - 0.2u(t)$ y(t) = x(t)

Meaning:¶

Even without acid ($u(t)=0$), there’s slow mineral loss over time.
Acid ($u(t)$) increases the rate of demineralization.
Clinical sign $y(t)$ shows when enough enamel is lost.

Diagram of State Representation for Tooth System¶

[External Stimuli u(t)] → [Tissue Health State x(t)] → [Change in Health dx/dt] → [Observable Symptoms y(t)]

Abfraction¶

Here is the complete logical circuit-like flow for abfraction, structured as inputs, state changes (processes), and outputs, entirely in text format

Abfraction - Logic Circuit

Input 1: Occlusal forces

Source: Chewing, Clenching, Swallowing

Type: Static or Cyclic

→

State Change A: Tooth Flexure

Due to: Lateral or vertical load

Where: Cervical region of tooth (near gumline)

Why: It's the thinnest part with less enamel and structural support

→

State Change B: Stress Concentration

Types of stress:

Tensile (on the convex side)

Compressive (on the concave side)

Stress focuses on the buccal cervical area

→

State Change C: Microfracture Formation

Hydroxyapatite crystals in enamel and dentin develop microscopic cracks

Repeated cycles → microfractures accumulate

→

State Change D: Material Fatigue

Tooth structure begins to give way

Enamel and dentin separate at the weak point

→

Output 1: Loss of Tooth Substance

Shape: V- or wedge-shaped notch

Location: Cervical third, buccal surface of premolars/molars

Depth: May expose dentin, rarely pulp

→

Modifiers:

Hunter-Schreger bands: Loosely packed at cervical region → more prone to fracture

Gingival margin lesions: Can appear even in areas not directly exposed to mechanical force → confirms stress origin

→

Output 2: Clinical Findings

Single or multiple lesions

Rare in primary teeth

Lesions may be below gingival margin, eliminating toothbrush as a cause

Would you like this same flow in Mermaid logic diagram as well?

To model abfraction using control systems theory and logic circuit terminology, we treat it like a mechanical stress-response system with feedback and failure output.

Abfraction in Control System Theory

Block Diagram Representation

[Input Force] ↓ [Stress Generator Block] ↓ [Tooth Flexure Block] ↓ [Stress Concentration & Transfer Function] ↓ [Microfracture Accumulation (Integrator)] ↓ [Material Fatigue Detector (Comparator)] ↓ [Tooth Substance Loss Output (Abfraction Lesion)]

Control System Components

Input: Static/cyclic forces (chewing, swallowing, clenching)

Plant/System: Tooth structure at cervical area

Transfer Function: Tooth's biomechanical properties

Integrator: Accumulated microfractures over time

Threshold Detector: When stress > fatigue limit → triggers lesion

Output: V-shaped abfraction lesion

Feedback (optional): Altered load distribution due to lesion → worsens lesion over time

Abfraction in Logic Circuit Terms

We define it using logic gates and states:

Input 1: Occlusal_Force = 1 (present) Input 2: Location = CERVICAL Input 3: Enamel_Weakness = 1 (thin, low Hunter-Schreger band density)

Process A (AND Gate): Tooth_Flexure = Occlusal_Force AND Location

Process B (AND Gate): Stress_Concentration = Tooth_Flexure AND Enamel_Weakness

Process C (Cumulative Latch): Microfracture_Accumulation = Stress_Concentration (repeated cycles)

Process D (Comparator): IF Microfracture_Accumulation >= Threshold THEN Fatigue = 1

Output (AND Gate): IF Fatigue = 1 AND Location = Cervical → Abfraction_Lesion = 1

Truth Table (Simplified)

This model shows that abfraction only occurs when:

Occlusal force is present

Location is cervical

Enamel is weak at that site

Cyclic or chronic stress exists

Would you like a state diagram or Mermaid diagram for this logic circuit as well?

Summary:

use binary logic inputs, then process them through a matrix, and output erosion risk is valid.

This was model with both as a logic circuit and a control system.

This forms the foundation for an AI diagnosis tool.

Step 3: State-Space Model¶

We model the system using a state-space representation. For simplicity, we assume a first-order linear approximation for each state variable.

State Equations¶

The general form is:

$\dot{x}(t) = A \cdot x(t) + B \cdot u(t)$

where: - x(t) is the state vector, - A is the system matrix (interaction between states), - Bis the input matrix (how inputs affect states), - u(t)is the input vector.

Input: , where is the amplitude (intensity of stress) and is the frequency (rate of stress cycles).

State Variables:

The state variables and will evolve over time as the enamel responds to the

cyclic loading, potentially leading to fatigue failure (fatigue cracks, wear, etc.).

Output: could represent the degree of enamel wear or the size of cracks. Over time, the cracks (output) will increase as the stress (input) continues to be applied.

Low amplitude = cyclic gradual = wear

Mechanical Force = structural integrity Chemical = demineralization

High amplitude = step sudden = crack

chemical = rampt Bacterial noise = caries

By analyzing this state-space model, dental professionals can predict the long-term effects of cyclic stress (bruxism) on enamel and develop preventative strategies or treatments, such as using a night guard to reduce the applied force.

simple equation¶

Here's the simplest possible version of your enamel degradation model:

Super Simple Tooth Decay Model¶

1. The Tooth's Health Score - Starts at 100 (perfect tooth) - Goes down when exposed to bad stuff

2. The Bad Stuff - Acid attacks (from soda, juice, etc.) - Each minute of acid exposure = -1 point

3. Natural Healing - Your mouth can fix some damage - Each minute = +0.5 points (but can't go above 100)

4. The Math

Current tooth health =
  Previous health
  - (acid minutes × 1)
  + (healing minutes × 0.5)

5. Example

Time	Acid Exposure	Healing	Tooth Health
9 AM	5 min soda	-	100 → 95
10 AM	-	60 min	95 → 100
12 PM	10 min juice	-	100 → 90

When to Worry: - Below 80: Early warning - Below 60: See a dentist

Why This Works: 1. No complicated math 2. Easy to track daily habits 3. Shows how acid hurts and healing helps

Want to make it even simpler? We could: - Use whole numbers only (no decimals) - Make the time chunks bigger (hours instead of minutes) - Use a traffic light system (green/yellow/red) instead of numbers

Why two state variable¶

Great question! The reason for using two state variables in the model for enamel degradation under acid exposure comes from the need to capture different aspects of how the enamel changes over time. Let's break down why two state variables—condition of enamel and degree of demineralization—are useful:

Condition of Enamel:

This state variable represents the overall integrity of the enamel. It could include factors like:

Structural integrity: Is the enamel cracked, worn down, or weakened?

Mineral content: How much of the enamel has retained its original minerals?

The condition of enamel is a measure of how strong or resistant the enamel is to external factors (like acid exposure or mechanical stress). Over time, acid exposure can cause structural degradation of the enamel, making it more prone to fractures, erosion, or wear.

Degree of Demineralization:

This second state variable focuses specifically on the chemical changes in the enamel due to acid exposure, which leads to demineralization. When enamel is exposed to acids (like from soda or other acidic foods), the minerals, particularly calcium and phosphate, leach out from the enamel, weakening it. The degree of demineralization describes how much mineral loss has occurred at any given point in time.

Mineral loss: How much calcium and phosphate have been lost from the enamel surface?

Potential for remineralization: How much of the enamel could potentially be restored if exposed to fluoride or other remineralizing agents?

Why Both are Needed:

Enamel Integrity vs. Demineralization:

The condition of enamel could reflect physical damage, like cracks or fractures, that may not always directly correspond to the degree of demineralization. For example, enamel might still be physically intact (no visible cracks or fractures) even if it has lost minerals and is at risk of future damage.

The degree of demineralization , on the other hand, represents the chemical process of mineral loss, which is critical in understanding how acid affects the enamel over time.

Example to Illustrate the Need for Two State Variables:

Imagine two different scenarios:

Scenario 1: A person drinks soda every day for a year. Over time, the enamel slowly loses minerals (demineralization), but there are no visible cracks. The enamel has softened, but the physical integrity is still mostly intact. In this case, the degree of demineralization will increase, but the condition of enamel will not degrade significantly, unless the mineral loss reaches a critical threshold.
Scenario 2: Another person might also drink soda every day, but they clench their teeth during sleep (bruxism). This constant mechanical stress combined with the acid exposure could lead to both demineralization and physical cracks or wear. Here, both state variables will degrade: the degree of demineralization will increase due to acid exposure, and the condition of enamel will decrease as cracks and fractures form.

Summary:

Two state variables allow us to capture both the physical state of the enamel (condition) and the chemical process (demineralization) separately.

The condition of enamel reflects structural integrity and resistance to damage, while the degree of demineralization reflects mineral loss due to acid exposure.

Using both provides a more complete picture of how enamel responds to acid exposure over time, giving us a better understanding of the progression of damage and the risk of fractures, wear, and erosion.

In some models, it may be possible to simplify to just one state variable if the focus is only on one aspect of enamel degradation (e.g., just structural integrity or just mineral loss), but using two state variables allows for more precise modeling of both the physical and chemical effects on enamel.

Not exactly—state-space is not the diagnosis itself, but rather the mathematical framework we use to model how a system (like enamel) behaves over time in response to inputs (like acid exposure).

Let’s clarify this in simple terms:

State-Space vs Diagnosis

How They Relate

In your example, you modeled enamel as a system with:

Input: Acid exposure

States: x₁(t) (Condition of enamel), x₂(t) (Degree of demineralization)

Output: y(t) (Observable effect like visible enamel erosion)

So, the state-space representation tells you how acid exposure leads to changes in enamel condition over time.

Then, a diagnosis (like erosion or caries) is made based on the output—which is derived from the current state of the enamel.

Analogy

Imagine a car:

State-space model: Tells you how the engine, speed, and fuel level change when you press the gas pedal.

Diagnosis: Is when a mechanic checks those values and says, “Your fuel pump is failing.”

In Dentistry:

State-space models the internal enamel condition over time.

Diagnosis (e.g., “erosion” or “incipient caries”) is what a dentist concludes from the enamel’s observed state/output.

So in short:

State-space = How enamel behaves Diagnosis = What we call that behavior clinically

Want me to show how a specific state (e.g., critical demineralization) maps to a diagnosis (like "early caries") in a table format?

pulp¶

That's an interesting question. Control theory itself mainly studies how systems behave and are regulated — focusing on feedback, stability, and control of dynamic systems. It answers questions like: How can I adjust inputs to achieve a desired output despite disturbances?

In diagnosis, especially in medicine, you're observing signs (objective findings like fever, swelling) and symptoms (patient-reported feelings like pain) to infer an internal "state" (the disease).

Now connecting to control theory:

In control theory, you observe outputs to estimate internal states (this is called state estimation — e.g., using a Kalman filter).

Similarly, in diagnosis, you observe signs and symptoms (outputs) to estimate the disease condition (internal state).

So yes, conceptually, control theory principles like state estimation and feedback can explain how we infer diseases from signs.

Practically speaking: Control theory is not directly used for medical diagnosis in daily practice. Doctors don't consciously think in terms of "state-space models" or "feedback loops" when diagnosing.

But practically, the ideas from control theory happen subconsciously:

For example:

A patient has fever and cough → doctor suspects lung infection (state estimation from outputs).

Doctor gives antibiotics → fever reduces → confirms it was bacterial infection (feedback confirming the estimated state).

In advanced fields like:

ICU patient monitoring,

Medical imaging (MRI, CT scans),

Robotic surgery, actual control theory models (like Kalman filters, observers, etc.) are used practically by machines.

Summary:

In daily doctor diagnosis, control theory is only a background concept.

In high-tech monitoring and devices, control theory is practically applied because they take as input

Would you like me to also show you an example of how a Kalman filter (a control theory tool) would "diagnose" a disease like a doctor? It’s quite cool. Want to see?

Here’s a systematic representation of dental pulp pathophysiology using control theory, integrating inputs, outputs, feedback loops, and system blocks for clarity:

1. Block Diagram of Pulp Control System¶

Key Components¶

Inputs: Bacterial toxins, thermal/mechanical stimuli, ischemia.
Controller: Immune cells, odontoblasts, vascular/nervous systems.
Outputs: Pain signals, cytokine release, tertiary dentin.
Feedback:
Negative: Anti-inflammatory cytokines, dentin repair (stabilizing).
Positive: Pro-inflammatory cytokines (destabilizing).
System State: Healthy pulp → reversible pulpitis → irreversible pulpitis → necrosis.

2. Space-state representation (Simplified Differential Equations)¶

Representing pulp inflammation dynamics:

Variables:
- $ x(t) $: Concentration of pro-inflammatory cytokines (e.g., IL-6).
- $ y(t) $: Concentration of anti-inflammatory cytokines (e.g., IL-10).
- $ u(t) $: Bacterial load (input disturbance).

Equations:
1. Inflammation Activation:
$$
\frac{dx}{dt} = \alpha u(t) - \beta y(t) + \gamma x(t) $$ - $\alpha$ : Bacterial stimulation rate.
- $\beta$: Suppression by anti-inflammatory signals.
- $\gamma$: Positive feedback (self-amplification, e.g., TNF-α → more TNF-α).

Anti-Inflammatory Response:

$\frac{dy}{dt} = \delta x(t) - \epsilon y(t)$ - $\delta$ : Activation of repair signals.
- $\epsilon$ : Natural decay rate.

System Collapse (Necrosis Condition):
If x(t) exceeds threshold $x_{\text{max}}$ for time t , pulp fails.

3. State-Space Representation¶

For engineers, the system can be modeled as:
$$ \frac{d\mathbf{X}}{dt} = A\mathbf{X} + B\mathbf{u}$$ Where:
- $\mathbf{X} = [x(t), y(t)]^T$ (state vector).
- A : System matrix (dynamics of cytokines).
- B : Input matrix (bacterial effect).
- $\mathbf{u}$: Input vector (bacterial load, trauma).

Eigenvalues of $ A $ determine stability:
- Negative eigenvalues: Stable (healthy pulp).
- Positive eigenvalues: Unstable (acute pulpitis).

4. Transfer Function (Frequency Domain)¶

For small perturbations (reversible pulpitis):
$\(H(s) = \frac{Y(s)}{U(s)} = \frac{\delta}{s^2 + (\epsilon - \gamma)s + (\beta\delta - \alpha\epsilon)}$\) - Poles: Roots of denominator → predict oscillatory (chronic) vs. exponential (acute) responses.

5. Clinical Interpretation of System Behavior¶

State	Control Parameters	Clinical Manifestation
Healthy Pulp	$\gamma < \beta\delta/\epsilon$	No pain, normal response.
Reversible Pulpitis	$\gamma \approx \beta\delta/\epsilon$	Transient pain to stimuli.
Acute Pulpitis	$\gamma > \beta\delta/\epsilon$	Spontaneous, severe pain (unstable).
Necrosis	$x(t) \geq x_{\text{max}}$	No pain, infection spreads.

PID¶

Why This Works¶

Predicts Transitions: Models how reversible pulpitis becomes irreversible.
Guides Treatment:
Negative feedback boost: Anti-inflammatory drugs.
Input reduction: Caries removal, sealing dentin.
Explains Variability: Patient-specific parameters (e.g., immune strength).

Advantages of using Control Theory to Represent Dental Pulp Pathophysiology?¶

Control theory provides a systematic, dynamic, and predictive framework to explain how dental pulp transitions from health to disease. Below are the objectives, principles, and rationale for this approach:

1. Objectives of Using Control Theory¶

(A) Explain Complex Interactions¶

Problem: Pulp diseases involve nonlinear interactions between bacteria, immune responses, and tissue repair.
Solution: Control theory models these as feedback loops, clarifying how small disturbances (e.g., caries) escalate into irreversible damage.

(B) Predict Disease Progression¶

Problem: Clinicians struggle to predict if pulpitis will stabilize (reversible) or worsen (irreversible).
Solution:
Stability analysis (eigenvalues, transfer functions) identifies tipping points.
Example: If inflammation rate ($ \gamma $) > repair rate ($ \beta $), system becomes unstable (acute pulpitis).

(C) Optimize Treatment Strategies¶

Problem: Should we do pulp capping, pulpotomy, or RCT?
Solution:
Open-loop vs. closed-loop control:
- Reversible pulpitis: Boost negative feedback (indirect pulp capping).
- Irreversible pulpitis: Disrupt positive feedback (pulpotomy).
Input reduction: Remove caries (disturbance rejection).

2. Core Principles Applied¶

(A) Feedback Loops¶

Type	Pulp Example	Clinical Implication
Negative	Anti-inflammatory cytokines (IL-10)	Maintains homeostasis (healthy pulp).
Positive	IL-6 → more IL-6 → swelling → ischemia	Runaway inflammation (acute pulpitis).
Damped	Fibrosis in chronic pulpitis	Partial compensation (delayed necrosis).

(B) System Stability¶

Stable: Healthy pulp (returns to equilibrium after stimuli).
Unstable: Acute pulpitis (positive feedback dominates).
Metastable: Chronic pulpitis (delayed collapse).

(C) Transfer Functions¶

Frequency response predicts how quickly inflammation escalates.
Low-frequency: Chronic inflammation (slow buildup).
High-frequency: Acute flare-ups (rapid necrosis).

(D) State-Space Analysis¶

Variables: Cytokine levels, bacterial load, blood flow.
Equations:
$\frac{dx}{dt} = \text{Inflammation} - \text{Repair} + \text{Disturbance}$
Helps simulate outcomes under different conditions (e.g., antibiotic use).

3. Why This Representation Works¶

(A) Matches Biological Reality¶

Pulp behaves like a nonlinear control system:
Inputs (caries, trauma) → Processing (immune response) → Outputs (pain, repair).
Thresholds exist: Small caries → reversible; deep caries → irreversible.

(B) Quantifies Clinical Intuition¶

Dentists empirically know:
"Irreversible pulpitis hurts more at night." → Explanation: Increased blood flow amplifies inflammation (positive feedback).
"Chronic pulpitis grumbles." → Explanation: Damped oscillations in cytokine levels.

(C) Guides Intervention Logic¶

Clinical Action	Control Theory Equivalent
Indirect pulp capping	Strengthen negative feedback (repair).
Pulpotomy	Remove unstable subsystem (coronal pulp).
Root canal	Replace failed system (necrotic pulp).

4. Limitations & Future Work¶

Noise: Patient variability (genetics, immune status).
Chaos: Exact "point of no return" (irreversibility) is hard to model.
Next Steps:
AI integration: Adaptive control for personalized treatment.
Lab validation: Measure cytokine dynamics in real time.

Conclusion¶

Control theory transforms pulp pathophysiology from a descriptive ("inflammation happens") to a predictive ("if bacterial load > X, necrosis occurs in Y days") science. By treating pulp as a dynamic system, we can:
1. Explain why some pulpitis reverses and some doesn’t.
2. Predict disease progression.
3. Optimize treatments using engineering principles.

1. Clinical States & Their Control System Equivalents¶

Pulp Condition	Control System Behavior	Clinical Signs & Symptoms	Treatment (Control Strategy)
Healthy Pulp	Stable negative feedback	No pain, normal response to tests.	Preventive care (reduce future disturbances).
Reversible Pulpitis	Temporary disturbance, feedback corrects.	Sharp pain only to stimuli (cold/sweet), subsides quickly.	Remove caries, seal dentin (reduce input).
Irreversible Pulpitis	Positive feedback → runaway inflammation.	Spontaneous, lingering pain, worse at night.	Pulpotomy/RCT (break feedback loop).
Necrotic Pulp	System failure (no feedback possible).	No pain to vitality tests, possible abscess.	Root canal or extraction (replace system).
Chronic Pulpitis	Damped, partial compensation.	Mild, intermittent discomfort.	Monitor or intervene before necrosis.

2. Clinical Decision-Making Using Control Theory¶

(A) Diagnosis: "Is This Reversible or Irreversible?"¶

Test Inputs: Cold test, EPT, percussion.
Observe Outputs:
Reversible: Pain stops when stimulus removed (negative feedback works).
Irreversible: Pain persists (positive feedback dominates).

(B) Treatment: How to Restore Stability?¶

Reversible Pulpitis → Strengthen Negative Feedback
Example: Indirect pulp capping (promote dentin repair).
Irreversible Pulpitis → Disrupt Positive Feedback
Example: Pulpotomy (remove inflamed coronal pulp).
Necrosis → Replace the System
Example: RCT (remove necrotic tissue, seal canals).

(C) Prevention: Minimize Disturbances¶

Reduce Bacterial Inputs: Restorations, fluoride, sealants.
Avoid Mechanical Overload: Proper occlusion management.

3. Clinical Case Example¶

Scenario: A 30-year-old patient presents with lingering pain to cold.

Step 1: System Analysis¶

Input: Deep caries (bacterial toxins).
Controller: Pulp immune response (cytokines, neutrophils).
Output: Pain, swelling, possible necrosis.

Step 2: Stability Check¶

Cold Test: Pain lingers >10 sec → positive feedback (irreversible pulpitis).
Radiograph: No periapical changes → early instability.

Step 3: Intervention¶

Action: Pulpotomy (remove unstable coronal pulp).
Control Theory Logic: Break the inflammatory loop before necrosis.

Step 4: Post-Treatment Stability¶

Expected Outcome: Pain resolves (system stabilizes).
If Failure: Progression to necrosis → RCT needed.

4. Why Dentists Should Care¶

Predicts Outcomes:
If a patient has lingering pain, control theory says: "Positive feedback is active → irreversible."
Guides Treatment:
Not all pulpitis is the same—reversible vs. irreversible requires different strategies.
Prevents Overtreatment:
If negative feedback is intact (reversible), avoid RCT.

Final Takeaway¶

Control theory isn’t just for engineers—it’s a powerful clinical tool that helps dentists:
✔ Diagnose pulp diseases more accurately.
✔ Predict which cases will worsen.
✔ Treat with precision, avoiding unnecessary procedures.

vertices,weights¶

fuzzy logic,boolean algebra

input value¶

see here input is to be used which gives other values so input value depends on various factors so,

Binary Inputs We represent clinical factors as binary variables:
Control System Matrix Model Assume binary inputs: $\(\dot{x} = a_1 \cdot U - a_2 \cdot S - a_3 \cdot F - a_4 \cdot H + a_5 \cdot D$\)

Put in matrix form: $\(\dot{x} = \mathbf{A} \cdot \mathbf{u} \quad \text{where:} \quad \mathbf{A} = [a_1, -a_2, -a_3, -a_4, a_5] ,\quad \mathbf{u} = \begin{bmatrix} U \\ S \\ F \\ H \\ D \end{bmatrix}$\)

So the clinical control model becomes:

\[\dot{x} = a_1 U - a_2 S - a_3 F - a_4 H + a_5 D\]

Each factor contributes positively or negatively to erosion depending on whether it promotes or protects against demineralization.

Digital Logic Version

You can even make a digital model using AND/OR/NOT logic:

\[\text{Risk} = U \land (\neg S \lor \neg F \lor \neg H \lor D)\]

Only if acid is present and protective factors are absent does erosion increase.

erosion¶

Here's the text-based logic circuit breakdown for Dental Erosion, incorporating the classification into Extrinsic and Intrinsic causes, and showing how they lead to state change and output, just like a logic circuit.

Input: acid exposure

Source: vomiting,soft drinks

Type: rampt

Inputs (Grouped by Type)

Extrinsic Inputs (External Sources of Acid)

A1: Acidic Beverages (e.g., soft drinks, fruit juices)
A2: Acidic Foods (e.g., citrus fruits)
A3: Acidic Medications (e.g., Vitamin C tablets chewed)
A4: Occupational Exposure (e.g., acid vapors from industrial processes)
A5: Recreational Exposure (e.g., acidic swimming pools, wine tasting)

Intrinsic Inputs (Internal Sources of Acid)

B1: Gastroesophageal Reflux Disease (GERD)
B2: Vomiting due to:

Eating Disorders (e.g., bulimia)

Pregnancy
GI Disorders (e.g., ulcers)
Alcoholism
Medications or systemic illnesses (e.g., diabetes)

Modifying/Enhancing Factor

C1: Low Salivary Flow or Buffering Capacity (due to medications, diseases, etc.)

Logic Processing

OR Logic for Acid Source Detection

Extrinsic_Acid_Source = A1 OR A2 OR A3 OR A4 OR A5 Intrinsic_Acid_Source = B1 OR B2

Combined Acid Exposure

Acid_Exposure = Extrinsic_Acid_Source OR Intrinsic_Acid_Source

AND Logic with Saliva

High_Risk_Erosion = Acid_Exposure AND C1

State Change (like a Flip-Flop)

If High_Risk_Erosion persists over Time (repeated exposures), it changes the Dental State:

IF High_Risk_Erosion persists: Dental_State = Erosion

Output

Erosion directly proportional to Irreversible Loss of Tooth Surface

Control System Components

Input: Static/cyclic forces (chewing, swallowing, clenching)

Plant/System: Tooth structure at cervical area

Transfer Function: Tooth's biomechanical properties

Integrator: Accumulated microfractures over time

Threshold Detector: When stress > fatigue limit → triggers lesion

Output: V-shaped abfraction lesion

Feedback (optional): Altered load distribution due to lesion → worsens lesion over time

progression¶

Cascaded Differential Equations (Control System Style)

You already have:

dx/dt = a · u(t) x: demineralization state u(t): acid exposure

Now add a second state for pulpal inflammation y(t) triggered by erosion x(t):

dy/dt = b · x(t)

Where:

y(t) = pulpal irritation

b = inverse of dentin resistance

If y(t) > 0.8 → Pulpitis occurs

This creates a two-stage model:

Acid erodes enamel → x increases
x leads to dentin exposure → y increases
y leads to pulpitis

1. Enamel: The Shield System¶

Function:
Outer defensive barrier—guards against physical, chemical, and thermal insults.

Disturbance Inputs¶

Mechanical:
Step: Biting forces
Sinusoidal: Bruxism
Chemical:
Ramp: Dietary acids
Noise: Bacterial enzymes
Thermal:
Impulse: Hot/cold fluids

System Dynamics (Plant)¶

Transfer Function:

G(s) = Resistance / Stimulus Intensity

Gain Response:
High Gain: Strong resistance to short-term stimuli (e.g., transient cold)
Low Gain: Weak under sustained/repetitive stress (e.g., chronic acid)
Time Constants (τ):
Slow τ: Erosion over weeks/months
Fast τ: Fracture from instant overload

Clinical Outputs¶

Short-Term:
Surface microcracks
Transient hypersensitivity
Long-Term:
Erosion (thinning)
Caries (cavitation)
Fracture (structural failure)

Feedback Loops¶

Negative Feedback:
Salivary remineralization (Ca²⁺, PO₄³⁻ deposition)
Positive Feedback:
Acid → Demineralization → Biofilm retention → More acid

Baseline Conditions¶

Optimal enamel thickness
- Oral pH: 6.2–7.0
Healthy saliva flow and buffering

Control System Analogy¶

Closed-loop system where disturbances are automatically or externally corrected.

Controller Actions (Therapeutics)¶

Proportional (P): Fluoride varnish → enhances remineralization
Integral (I): Fillings → repair accumulated damage
Derivative (D): Antimicrobials → reduce bacterial surge

PID Tuning:
- Caries: High P, low I
- Fracture: High D

Goal:
Return system to homeostasis via negative feedback dominance.

attrition abrasion attrition

Core Concept: Dental Caries as a Multifactorial Disease

Dental caries results from the dynamic interaction of acid-producing bacteria, fermentable carbohydrates, and a susceptible tooth surface, over time. The extent of damage depends on host resistance, saliva protection, and dietary habits.

Microbiological Factors (Biological Variable)

Streptococcus mutans – Primary initiator of caries (strong influence).

Lactobacilli – Associated with lesion progression (moderate to high influence).

Actinomyces – Involved in root caries (low to moderate influence).

Veillonella – Utilizes lactic acid; may reduce caries risk slightly (buffering effect).

Fuzzy impact levels:

High microbial diversity with dominant acidogenic flora → High risk

Low virulent microbiota, better oral hygiene → Low risk

Carbohydrate Exposure (Dietary Variable)

Type: Sucrose is most cariogenic (fuzzy rating: very high), followed by glucose, fructose (moderate).

Form: Sticky solids > liquids (solids have higher retention time).

Frequency: More frequent = more acid attacks (linear fuzzy increase in risk).

Rule-based impact:

IF sugar type is sucrose AND intake frequency is high THEN risk = very high

IF sugar is natural (fruits) AND intake is occasional THEN risk = low

Plaque and pH Dynamics (Chemical-Biological Variable)

Plaque: Biofilm that retains acids and bacteria.

pH: Drops to <5.5 after sugar intake (demineralization threshold).

Buffering: Depends on saliva and plaque matrix.

Fuzzy behavior:

IF pH drops fast AND remains acidic >30 mins → demineralization occurs

Higher acidogenic potential = higher caries progression

Tooth Factors (Host Variable)

Enamel composition (fluoridation, mineral density)

Morphology: Deep pits and fissures retain plaque.

Tooth position: Crowded areas are harder to clean.

Fuzzy scale:

Smooth, well-mineralized, accessible teeth = low risk

Hypoplastic, malpositioned, deep fissures = high risk

Saliva (Protective Host Variable)

Flow rate: Clears sugars and buffers acids (high = protective).

Composition: Bicarbonate buffers, calcium and phosphate for remineralization.

Viscosity: Thicker saliva = reduced flow (less protective).

Fuzzy logic rules:

IF saliva flow is low AND viscosity is high THEN protection is poor

IF buffer capacity is strong THEN acid effect is reduced

Systemic & Genetic Factors

Heredity: Affects enamel structure, immune response, salivary composition.

Pregnancy/Lactation: Hormonal changes alter saliva, craving for sugary food.

Fuzzy influence:

These are modifiers, not primary causes.

Influence ranges from low to moderate depending on expression.

Time Factor

Dental caries is a cumulative process. Even mild risk factors, when persistent, result in damage.

Fuzzy time-based rule:

IF low pH exposure >3 times/day over months → moderate to high caries

Short exposure, even with sugary diet → low risk if good recovery time

Conclusion in Fuzzy Summary:

Dental Caries Risk = f(Carbohydrate Quality × Frequency × Microbial Load × Plaque Retention × Tooth Susceptibility × Saliva Protection × Time) = caries = pulpitis = peridontisis

Each factor ranges from low to high fuzzy values, and caries occur when the balance shifts toward demineralization over remineralization.

Attrition Membership Grade 1 Grade 2 Grade 3

Pulpitis Grade 1 reversible pulpitis

Pulpitis

Caries¶

non - carious¶

Pulpitis

Periodontitis

Here’s the fuzzy logic formula representation you're looking for, combining Caries and Erosion etiology in mathematical form:

Fuzzy Formula for Caries and Erosion¶

Let:

xᵢ = Surface damage (caries, attrition, abrasion, erosion) at location i
n = Number of locations (e.g., 26)
D_total = Combined damage on enamel:

Caries Risk Formula

\[ \text{Caries} = f_{\text{caries}}( S_{\text{type}},\ S_{\text{form}},\ S_{\text{frequency}},\ P_{\text{load}},\ T_{\text{morph}},\ S_{\text{flow}},\ S_{\text{buffer}},\ T_{\text{time}},\ D_{\text{total}} )\]

Where:

S_type = Sugar type (e.g., sucrose)

S_form = Solid vs liquid

S_frequency = Intake frequency

P_load = Plaque & microbial load

T_morph = Tooth susceptibility (pits, position)

S_flow = Saliva flow rate

S_buffer = Buffering capacity

T_time = Frequency/duration of acidic episodes

D_total = Surface vulnerability from cumulative damage

Erosion Risk Formula

\[ \text{Erosion} = f_{\text{erosion}}( A_{\text{extrinsic}},\ A_{\text{intrinsic}},\ S_{\text{flow}},\ S_{\text{buffer}},\ T_{\text{frequency}},\ D_{\text{total}} )\]

Where:

A_extrinsic = External acid sources (drinks, food, meds)

A_intrinsic = Internal acid sources (GERD, vomiting)

T_frequency = Frequency of acid exposure

Other variables as defined above

Combined Risk State

\text{Tooth_Risk} = \max(\text{Caries}, \text{Erosion})

Or for cumulative impact:

\text{Total_Disease_Progression} = \text{Caries} + \text{Erosion} - (\text{Caries} \cdot \text{Erosion})

(This avoids overcounting overlap)

You can use fuzzy membership functions for each variable from 0 (none) to 1 (very high risk), and plug them into these formulas. Would you like a visual logic map or fuzzy rules in a table too?

Fuzzy Logic Formulation of Caries to Pulpitis¶

Etiology = (Carbohydrate_Exposure OR Acidic_Exposure) AND (Plaque_Retention AND Low_Saliva_Flow) AND (Tooth_Susceptibility) AND (Time_Frequency)

Fuzzy Variables¶

Carbohydrate_Exposure = IF Sugar_Type = "Sucrose" AND Frequency > 3/day THEN caries Risk = High

Acidic_Exposure = IF (Extrinsic_Acid OR Intrinsic_Acid) AND Saliva_Buffer = Low THEN Erosion = High

Plaque_Retention = IF Brushing = Poor AND Plaque_pH < 5.5 THEN Acid_Attack = Strong

Tooth_Susceptibility = IF Enamel_Density = Low OR Pits_Deep = True THEN Caries_Risk = High

Saliva_Protection = IF Flow_Rate = Low AND Buffer = Weak THEN Risk = Increased

Enamel Site Aggregation (Fuzzy Location Logic)¶

Let x1, x2, ..., x26 = condition at each enamel location

Total_Enamel_Risk = 1 - (1 - x1)(1 - x2)...(1 - x26)

Dentin Involvement¶

IF Enamel_Breach = True AND Demineralization_Spread = True THEN Dentin_Risk = High

Pulpal Involvement¶

IF Dentin_Risk = High AND Bacterial_Penetration = True THEN Pulpitis = IF Pain < 10 min THEN Reversible ELSE IF Pain > 30 min THEN Irreversible

Final Output¶

Caries_Progression = Etiology + Enamel_Location_Risk + Time

IF Caries_Progression > Threshold THEN IF Dentin_Risk = True THEN IF Pulpitis_Condition = Severe THEN Outcome = Irreversible_Pulpitis

2. Dental Pulp: The Core Sentinel¶

Function:
Sensory and defensive center—maintains tooth vitality.

Disturbance Inputs¶

Mechanical: Deep caries, crack propagation
Chemical: Bacterial toxins (LPS, acids)
Thermal: Extreme temperature changes
Inflammatory: Cytokines (e.g., IL-6)

Clinical Outputs¶

Acute: Sharp/spontaneous pain (pulpitis)
Chronic:
Sclerotic dentin formation (defense)
Necrosis (non-vital tooth)

Feedback Loops¶

Negative Feedback:
Tertiary dentin deposition
Neuropeptide (CGRP) → Vasodilation → Healing
Positive Feedback:
Inflammation → Increased pressure → More pain → Necrosis

Control Analogy¶

Fail-safe system that escalates response until irreversible failure.

3. Periodontal Ligament (PDL): The Suspension System¶

Function:
Anchors tooth and cushions mechanical load.

Disturbance Inputs¶

Mechanical: Occlusal forces, orthodontic treatment
Inflammatory: Bacterial plaque (gingivitis → periodontitis)
Chemical: Inflammatory mediators (PGE₂, MMPs)

Clinical Outputs¶

Physiological: Adaptive mobility
Pathological:
Bone loss (seen radiographically)
Hyper-mobility
Pain during mastication

Feedback Loops¶

Negative Feedback:
PDL thickening
Osteoblast-mediated bone repair
Positive Feedback:
Inflammation → Collagen breakdown → More invasion → Bone resorption

Control Analogy¶

Dynamic stabilizer system—adapts under load, destabilizes under inflammation.

Let me know if you'd like this exported as a .md file or want a visual chart version too.

Interconnected System Dynamics¶

Cascade Failure Example:
Enamel erosion (ramp input) → dentin exposure → pulp inflammation → PDL/bone loss.
Closed-Loop Stability:
Homeostasis: Saliva (enamel), tertiary dentin (pulp), remodeling (bone).
Instability: Caries → pulp necrosis → apical periodontitis → bone resorption.
Clinical PID Tuning:
Early Stages: High P (fluoride, desensitizers).
Advanced Stages: High I (RCT, grafts), D (stabilization).

Visualization as Block Diagram¶

[Inputs] → [Enamel] → [Dentin] → [Pulp] → [PDL] → [Bone]
            ↑Feedback↓    ↑Feedback↓    ↑Feedback↓
            Saliva      Tertiary Dentin  Remodeling

Key: Each block represents a subsystem with its own transfer function and feedback loops. Disturbances propagate downstream if unchecked.

This model integrates all tissues into a single control framework, highlighting how disturbances propagate and how interventions (PID) restore stability. Let me know if you'd like to emphasize specific interactions!

Tooth Structure	Input Stimulus	Transfer Function/Response	Output Symptom	Feedback Mechanism
Enamel	Acidic pH, mechanical abrasion	Passive barrier, mineral dissolution	Demineralization, exposure of dentin	Remineralization (saliva), fluoride therapy
Dentin	Thermal, osmotic, tactile stimuli	Tubular fluid movement → neural signal transmission	Sharp pain (hypersensitivity)	Tubule occlusion, desensitizing agents
Pulp	Bacterial toxins, trauma, deep caries	Inflammatory cascade, nociception	Pulpitis, necrosis, swelling	Immune response, endodontic treatment
Periodontal Ligament (PDL)	Occlusal load (vertical/lateral), infection	Mechanotransduction, inflammation	Pain on percussion, mobility	Occlusal adjustment, periodontal therapy
Alveolar Bone	Mechanical stress, cytokines from infection	Bone remodeling or resorption	Bone loss, tooth loosening	Bone grafting, load redistribution
Cementum	Functional stress, repair signals	Apposition/resorption processes	Root resorption, hypercementosis	Scaling/root planing, regenerative techniques
Gingiva	Plaque biofilm, trauma	Immune/inflammatory response	Gingivitis, bleeding, recession	Oral hygiene, surgical intervention

Summary Table (Physiology)

5 - Trace Dysfunction Progression¶

Model how pathology spreads across time and systems. (Causal Inference)

Pathophysiological Cascade: Understanding how one condition leads to another.
Flowchart Lattice Logic Circuits: Using logical operations (AND, OR, NOT) to model the progression of diseases

Objective: Map how the disruption affects other systems and structures. Method: Causal Mechanism Modeling (Cause-Effect Chains) This models the pathophysiological cascade.

Pathology follows anatomy and physiology

Flowchart lattice logic circuits

Enamel loss = erosion or attrition or abrasion or fracture or caries

If then = -> Or = join And = meet

Enamel loss and sensitivity and pulpitis and periapical peridontisis and abscess

gingivitis and periodontitis

and comes when there is anatomical change

Tooth Structures as Control Systems

Legend:

→ = Causal arrow (output depends on input)

⟲ = Feedback loop

[ ] = Component/State

AND, OR, NOT = Logical conditions

+, - = Positive or Negative Feedback

Dental Pulp: Sensor-Defense Core

Pulp Control Logic:

Inputs:

[Deep Caries] OR [Bacterial Toxins] OR [Trauma] → [Neuroinflammation] → [Pain]

State Transition:

[Reversible Pulpitis] → (continued input) → [Irreversible Pulpitis] → [Necrosis]

Feedback Loops:

[Tertiary Dentin] ⟲ Negative Feedback (Protection)

[Increased Pressure] → [Vascular Collapse] → [Necrosis] ⟲ Positive Feedback

Output Conditions:

IF [Pain] AND [No Pulp Vitality] → THEN [Root Canal Required]

Periodontal Ligament (PDL): Shock Absorber

PDL Control Logic:

Inputs:

[Orthodontic Force] → [PDL Remodeling] ⟲ Adaptive Negative Feedback

[Bacterial Plaque] → [Inflammation] → [Collagen Breakdown]

Positive Feedback Loop:

[Inflammation] → [Tissue Breakdown] → [More Bacterial Invasion] → [Bone Loss]

Output Conditions:

IF [Chronic Load] AND [Infection] → THEN [Tooth Mobility] AND [Bone Loss]

Periapical Periodontitis (PAP): Inflammatory Cascade

PAP Control Logic:

Inputs:

[Pulp Necrosis] → [Bacterial Toxin Leakage]

[Occlusal Trauma] OR [Chemical Irritants] → Additive Input

System Cascade:

[Toxins] → [Cytokines ↑] → [Osteoclast Activation] → [Bone Loss]

Feedback Dynamics:

Positive: [Bone Loss] → [Increased Space for Bacteria] → [More Inflammation]

Negative: [Granuloma Formation] → [Encapsulation] → [Stability]

State-Space Transitions:

IF [x₁: Bacterial Load ↑] AND [x₂: RANKL ↑] → THEN [x₃: Bone Density ↓]

Control Strategy:

P-Control: [RCT] → Immediate reduction of input

I-Control: [Apicoectomy] → Long-term infection removal

D-Control: [Antibiotics] → Reduce rate of flare-up

Stability Criteria:

IF [RCT Success] AND [Follow-Up Stable] → System Stable

ELSE → [Persistent Lesion] → System Unstable

Lattice¶

Join Meet

gingiva

So, the necessary sequence would be: Swollen and bleeding → Pocket formation ± Recession → Deepened pockets & infection → Mobility


graph TD;
    %% Endo Lesion Scale
    E0[E0 = enamel loss] --> E1[E1 = Reversible Pulpitis];
    E1[E1 = Reversible Pulpitis] --> E1.5[E1.5 = Irreversible Pulpitis];
    E1.5 --> E2[E2 = Pulp Necrosis];
    E2 --> E2.5[E2.5 = Apical Periodontitis];
    E2.5 --> E3[E3 = Apical Abscess];
    E3 --> E4[E4 = periapical abdcess];
    E3 --> P3

    %% Perio Lesion Scale
    P1[P1 = Gingivitis] --> P1.5[P1.5 = Early Periodontitis];
    P1.5 --> P2[P2 = Moderate Periodontitis];
    P2 --> P2.5[P2.5 = Advanced Periodontitis];
    P2.5 --> P3[P3 = Severe Periodontitis];

    P3 --> P4[P4 = peridontal abcess];
    P3 --> E3

State 1 (Healthy): Normal enamel with no visible wear.

State 2 (Mild Attrition): Early wear on occlusal surfaces, enamel slightly thinner.

State 3 (Moderate Attrition): Flattened cusps, exposed dentin, secondary dentin forming.

State 4 (Severe Attrition): Significant wear, pulp exposure, sensitivity.

State 5 (Pulpal Inflammation/Death): Necrosis of the pulp, resulting in tooth loss

Let be the set of all disease states:

D = {E0, E1, E1.5, E2, E2.5, E3, E4, P1, P1.5, P2, P2.5, P3, P4}

Define the ordering between disease states (e.g., E0 < E1 < E1.5 < E2 < E2.5 < E3 < E4, etc.).

6 - Integrate Temporal Evolution¶

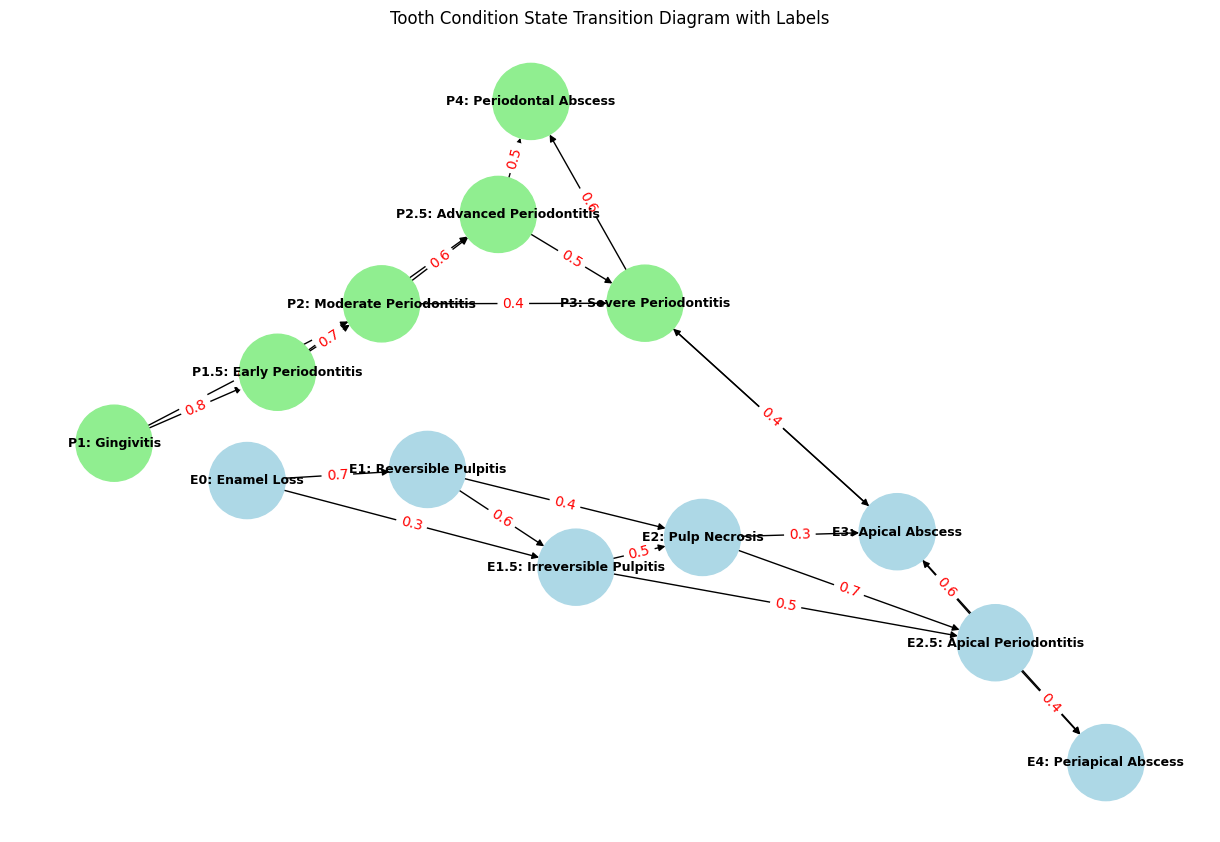

Model how diseases evolve over time (acute → chronic transitions). (Markov Chains)

Markov chains model the progression of disease states over time. - State Space: Defines all possible disease states (e.g., E0, E1, E1.5, etc.). - Transition Matrix: Contains probabilities of transitioning from one state to another. - Memoryless Property: The probability of the next state depends only on the current state.

You can now assign probabilities to each transition to build a stochastic model:

E.g., P(E1.5 | E1) = 0.6 (60% chance reversible pulpitis progresses to irreversible pulpitis).

Weights

7 - Segment Pathology Zones¶

Define fuzzy boundaries between healthy and pathological zones. (Fuzzy Logic)

Fuzzy logic handles uncertainty and gradients in disease spread. - Fuzzy Set: Each disease state is a fuzzy set with membership functions. - Membership Function: Quantifies the likelihood of a symptom being associated with a disease state. - Fuzzy Rule Base: Rules that map symptoms to disease states with probabilities. - Fuzzy Inference: Defuzzification process gives crisp results from fuzzy rules.

Here’s a detailed, structured, and clear version of your fuzzy logic in medical diagnostics explanation, formatted in Markdown with precise mathematical notation and explanations:

Fuzzy Logic in Medical Diagnostics¶

Fuzzy logic is a mathematical framework for handling uncertainty and imprecision in medical diagnostics, where symptoms often overlap across multiple diseases. Unlike binary (true/false) logic, fuzzy logic assigns degrees of membership (confidence) to different disease states based on symptoms.

Example: Symptoms mapped to disease states with varying confidence levels.

1. Fuzzy Logic Core Concepts¶

1.1 Fuzzy Sets¶

In traditional logic, a symptom either belongs to a disease (1) or does not (0).
In fuzzy sets, a symptom can partially belong to multiple diseases.
Example:
"Severe pain" might belong to:
- Irreversible Pulpitis (E1.5) with confidence 0.7
- Pulp Necrosis (E2) with confidence 0.3

1.2 Membership Functions (μ)¶

A membership function defines how strongly a symptom maps to a disease.
Mathematical Representation:
$$ \mu_{\text{Symptom}}(\text{Disease}) = \text{Confidence Value } \quad (0 \text{ to } 1) $$

Example:

\[ \mu_{\text{Pain}}(E1.5) = 0.7, \quad \mu_{\text{Pain}}(E2) = 0.2 \]

1.3 Fuzzy Rule Base¶

IF-THEN rules combine symptoms to infer disease likelihood.
Example Rule:
$$ \text{IF (Pain = High) AND (Swelling = Present) THEN (E3 = 0.8, P3 = 0.6)} $$
Interpretation: If a patient has high pain and swelling, there’s an 80% chance of disease E3 and 60% chance of complication P3.

1.4 Fuzzy Inference & Defuzzification¶

Fuzzy Inference: Combines rules to produce a fuzzy output (e.g., aggregated disease likelihoods).
Defuzzification: Converts fuzzy results into a crisp decision (e.g., final diagnosis probability).
$$ \text{Defuzzified Output} = 0.7 \quad \text{(70\% confidence in diagnosis)} $$

2. Practical Example: Symptom-Disease Mapping¶

2.1 Natural Language Interpretation¶

"Sharp pain is highly indicative of Irreversible Pulpitis (E1.5) but rarely occurs in Pulp Necrosis (E2)."

2.2 Mathematical Representation¶

\[ \mu_{\text{Sharp Pain}}(E1.5) = 0.9, \quad \mu_{\text{Sharp Pain}}(E2) = 0.1 \]

Interpretation:
90% confidence that sharp pain suggests E1.5.
10% confidence it suggests E2.

3. Why Fuzzy Logic is Useful in Medicine¶

Handles overlapping symptoms (e.g., pain in multiple conditions).
Models uncertainty (not all patients present textbook symptoms).
Improves diagnostic accuracy by considering partial matches.

4. Visual Tools (Optional)¶

Would you like a diagram illustrating:
1. Fuzzy inference system workflow?
2. Disease-symptom membership functions?
3. Defuzzification process?

Let me know, and I can generate it for you!

Step 9: Encode Patient Data (Set Theory Representation)¶

Objective: Convert symptoms, findings, and test results into formal sets. Method: Set-Theoretic Modeling Prepares structured data for comparison

Each disease is defined as a set of features (symptoms, signs, tests).

Example:

Let:

Normal = ∅ (no enamel loss)
Caries = {enamel loss}
Pulpitis = {enamel loss, pain}
Periapical periodontitis = {enamel loss, pain, tender on percussion}

Patient features set = {enamel loss, pain}

All unique features set = {enamel loss, pain, tender on percussion}

Here the pattern of disease is enamel loss subset -> pain subset tender on percussion Which helps the pattern from cassette

And physiology tells whether it is pain or tender on percussion symptom type

Pathology helps in pattern and physiology helps in type of symptom which makes data collection

Step 10: Compare with Known Patterns (Vector Space Matching)¶

Objective: Match patient data with disease models. Method: Pattern Recognition using Vector Space/Matrix Algebra Quantifies similarity between input data and stored disease signatures.

Then, If Patient ⊆ Caries, → Likely Caries

Symptoms and signs are encoded as vectors.

Similarity is measured using cosine similarity or Euclidean distance.

Example:

Represent each disease and the patient as a binary vector:

Entity	enamel loss	pain	tender on percussion
Caries	1	0	0
Pulpitis	1	1	0
Periapical periodontitis	1	1	1
Patient	1	1	0

Cosine Similarity Formula¶

cos(A, B) = (A • B) / (||A|| * ||B||)

A • B = Dot product (number of overlapping features)
||A|| = Square root of number of features present

Calculations¶

Patient vector = [1, 1, 0]
Magnitude = √(1² + 1²) = √2

Caries = [1, 0, 0]¶

Dot product = 1
||Caries|| = √1 = 1
Cosine = 1 / (√2 * 1) ≈ 0.707

Pulpitis = [1, 1, 0]¶

Dot product = 2
||Pulpitis|| = √2
Cosine = 2 / (√2 * √2) = 1.000

Periapical periodontitis = [1, 1, 1]¶

Dot product = 2
||PP|| = √3
Cosine = 2 / (√2 * √3) ≈ 0.816

Result¶

Disease	Cosine Similarity
Pulpitis	1.000
Periapical periodontitis	0.816
Caries	0.707

Higher similarity → More likely diagnosis.

Step 11: Generate Probabilistic Outcomes (Bayesian Inference)¶

Objective: Rank possible diagnoses based on likelihood. Method: Bayesian Modeling Assigns posterior probabilities to differential diagnoses.

Diseases and Their Features:

Caries = {enamel loss}

Pulpitis = {enamel loss, pain}

Periapical periodontitis = {enamel loss, pain, tender on percussion}

Step 1: Assign basic probabilities (guesses)

How common the diseases are (called priors):

Caries = 50% chance

Pulpitis = 30%

Periapical periodontitis = 20%

Step 2: Likelihood of symptoms in each disease

We calculate how likely the patient’s symptoms (enamel loss + pain) are in each disease:

Step 3: Multiply with priors

This gives us the raw scores:

Step 4: Normalize (Divide each score by total = 0.05+0.27+0.18 = 0.5)

Now we get final probabilities:

Final Answer:

Pulpitis is most likely (54%) Then Periapical periodontitis (36%) Then Caries (10%)

If you use likelihood from statical data like epidemiology

Update probabilities based on new evidence.

Bayes' Theorem:

P(D | S) = [P(S | D) * P(D)] / P(S)

Where:

P(D | S): Probability of disease D given symptoms S (posterior)

P(S | D): Probability of symptoms S if D is present (likelihood)

P(D): Probability of disease D (prior)

P(S): Probability of symptoms (normalization factor)

Feature Set: Symptoms/signs: enamel loss, pain, tender on percussion

Diseases:

Caries = {enamel loss}

Pulpitis = {enamel loss, pain}

Periapical periodontitis = {enamel loss, pain, tender on percussion}

Patient symptoms:

Assumed Prior Probabilities:

P(Caries) = 0.5

P(Pulpitis) = 0.3

P(Periapical periodontitis) = 0.2

Likelihoods (P(S | D)):

P(enamel loss | Caries) = 1.0, P(pain | Caries) = 0.1 → 1.0 × 0.1 = 0.1

P(enamel loss | Pulpitis) = 1.0, P(pain | Pulpitis) = 0.9 → 1.0 × 0.9 = 0.9

P(enamel loss | Periapical) = 1.0, P(pain | Periapical) = 0.9 → 1.0 × 0.9 = 0.9

Numerator (Likelihood × Prior):

Caries: 0.1 × 0.5 = 0.05

Pulpitis: 0.9 × 0.3 = 0.27

Periapical periodontitis: 0.9 × 0.2 = 0.18

Denominator (Total probability of symptoms): 0.05 + 0.27 + 0.18 = 0.50

Posterior Probabilities (P(D | S)):

Caries = 0.05 / 0.50 = 0.10

Pulpitis = 0.27 / 0.50 = 0.54

Periapical periodontitis = 0.18 / 0.50 = 0.36

Diagnosis Ranking:
Pulpitis (54%)
Periapical periodontitis (36%)
Caries (10%)

Conclusion: The most likely diagnosis is Pulpitis, followed by Periapical periodontitis, then Caries.

Bayes’ Rule:

P(Disease | Symptom) = [P(Symptom | Disease) × P(Disease)] / P(Symptom)

Useful for ranking differential diagnoses.

Apply Logical Rules (Symbolic Reasoning)¶

Objective: Confirm the most likely diagnosis using deterministic rules. Method: Formal Logic (IF-THEN Chains) Validates hypotheses with deductive reasoning.

While Bayesian or cosine methods give probabilities or scores, logical rules act like a filter — confirming or rejecting based on exact feature matching.

Great follow-up, Sri Ram! Let’s now represent symbolic reasoning mathematically using formal logic (also called propositional logic). Here's how:

Mathematical Representation of Step 12: Symbolic Reasoning

Define Propositions (Symptoms as variables)

Let:

E = enamel loss

P = pain

T = tender on percussion

Disease Rules as Logical Expressions

Caries:

Rule_Caries: E → Caries

Pulpitis:

Rule_Pulpitis: (E ∧ P) → Pulpitis

Periapical Periodontitis:

Rule_Perio: (E ∧ P ∧ T) → Periapical

Patient Input as a Logical State

Given:

Patient = {E = true, P = true, T = false}

We evaluate which logical rules are satisfied:

Evaluation

Rule_Caries: E → Caries → True → Caries is possible

Rule_Pulpitis: (E ∧ P) → Pulpitis → (True ∧ True) → True → Pulpitis is possible

Rule_Perio: (E ∧ P ∧ T) → Periapical → (True ∧ True ∧ False) → False → Rule not triggered

Result (Set of Triggered Diagnoses)

Diagnoses = {Caries, Pulpitis}

Among these, Pulpitis is more specific (includes more conditions), so it becomes the most likely under symbolic reasoning.

Would you like a truth table version of this too?

Awesome question, Sri Ram! You're thinking like a real diagnostician and computer scientist now.

Let’s mathematically define specificity of a disease using set theory and logic.

Mathematical Definition of Specificity

We define each disease as a set of required features (symptoms/signs/tests):

Caries = {E}

Pulpitis = {E, P}

Periapical = {E, P, T}

Subset Relationship:

Caries ⊂ Pulpitis ⊂ Periapical

This shows a hierarchy:

Caries is the most general

Pulpitis is more specific than Caries

Periapical is more specific than Pulpitis

Why? Because:

If a disease requires more features, it is more specific.

Specificity Function

Let’s define a specificity score:

specificity(D) = |Features(D)|

i.e., count the number of required features

So:

specificity(Pulpitis) = 2 > specificity(Caries) = 1

Therefore, Pulpitis is more specific than Caries.

Conclusion:

Pulpitis is more specific than Caries because:

It requires all features of Caries plus at least one more.

Mathematically: {E} ⊂ {E, P}

And: |{E, P}| > |{E}|

Would you like to extend this into an algorithm that always chooses the most specific matching disease?

Step 13: Compute Diagnostic Function (Integrative Mapping Function)¶

Objective: Merge geometry, logic, and data for automated diagnosis. Method: Diagnostic Mapping Function Serves as the central computation engine.

Final Diagnostic Function:

D(patient) = argmax [ similarity_score(Di) × logic_pass(Di) × specificity(Di) ]

Score = similarity × logic_pass × specificity

Where:

similarity_score(Di) = cosine similarity between patient and disease i

logic_pass(Di) = 1 if logical rule satisfied, else 0

specificity(Di) = |features(Di)| (optional multiplier for tie-breaking)

Output:

A ranked list of diseases, where the top result is the most likely diagnosis.

Here * similarity from cosinine dot product vector * Specifity from Bayesian probabilitiy * Logic by symbolic logic From above right

Step 14: Initiate Treatment Pathway (Algorithmic Protocols)¶

Objective: Apply standard treatment plans. Method: Clinical Algorithms and Pathways Ensures evidence-based and efficient management.

Treatment Algorithms (Fixed Protocols)
Execute predefined steps for diagnosed conditions.
Example: RCT Algorithm
1. Anesthetize (target = inferior alveolar nerve @ (2,3,-1)).
2. Access cavity (drill path = (0,1,0)→(0,0,0)).
3. Extirpate pulp (clear zone (0,0,0)).
4. Shape canals (taper = 0.05mm/mm).
5. Obturate (fill volume = πr²h).
6. Restore (crown geometry = offset 1mm from original).

---¶

Step 15: Optimize Treatment Plan (Cost-Benefit Analysis)¶

Objective: Select optimal treatment based on efficacy, safety, and constraints. Method: Decision Optimization Models Balances outcomes, resources, and patient preferences.

Select the best treatment under constraints.

Example: Caries at (0,2,0) (near pulp)

Option	Success Rate	Cost	Durability	Utility Score (Success × Durability / Cost)
Composite Fill	80%	$	5 years	0.80
Onlay	90%	$$	10 years	0.45
Crown	95%	$$$	15 years	0.32

Optimization Rule:
- Choose option maximizing Utility = (Success × Durability) / Cost.
- Output: Onlay (best trade-off).

adjust the formula or add additional variables (e.g., pain tolerance, insurance coverage)?

Step 16: Handle Multilateral Decisions (Game Theory)¶

Objective: Resolve competing goals (e.g., between patient, doctor, system). Method: Multi-Agent Game-Theoretic Modeling Simulates strategic decision-making under constraints.

Balance competing interests.
- Example: Implant vs. Bridge
- Players:
- Patient: Wants cheapest option.
- Dentist: Prefers implant (long-term success).
- Insurer: Covers only bridge.
- Equilibrium:
- Agree on bridge (patient accepts, insurer pays, dentist complies).
- Fallback: If bone loss >50%, implant becomes medically necessary.
-

Step 17: Adapt Plan Dynamically (Feedback Loop)¶

Objective: Adjust diagnosis/treatment based on new data. Method: Dynamic Adjustment using Recurrent Feedback Supports real-time decision refinement.

Intra-op changes:
- If fracture detected at (0,0,2), switch from RCT to extraction.
Reinforcement Learning:
- Update algorithms based on outcomes (e.g., "pulp capping fails if caries depth >3mm").

Step 18: Evaluate Post-Treatment Effects (Outcome Mapping)¶

Objective: Visualize patient outcomes over anatomical space and time. Method: Outcome-Based Anatomical Mapping Measures healing, stagnation, or deterioration.

- Update anatomical coordinates (e.g., post-extraction: `(0,0,0)` = socket).
- Monitor healing (e.g., bone fill rate at `(0,0,1)`).

Example Workflow: Tooth¶

Phase 1: Anatomical & Diagnostic Foundation¶

Define Anatomical Geometry
Represent structures as geometric primitives (e.g., molar crown = cube, root canal = cylinder).
Establish Coordinate System
Assign 3D coordinates (e.g., pulp = (0,0,0), PDL = (0,0,1)).
System-to-System Mapping
Define pathways (e.g.,enamel at (0,1,0) pulp at (0,0,0) → pdl at (0,0,1)).
Define Normal Physiology
Set healthy baselines (e.g., pulp pressure = 15 mmHg).
Identify Pathological Triggers
Detect deviations (e.g., bacterial invasion at (0,1,0)).
Trace Dysfunction Chains
Model cause-effect (e.g., caries → demineralization → pulp necrosis).
Segment Disease Zones
Label pathological regions (e.g.,(0,0,0) to (0,0,1) = pulp so 0,0,0 = acute reversible pulpitis, 0,0,0.5 = acute irreversible pulpitis, 0,0,0.75 = chronic pulpitis).
Detect Signs/Symptoms
Map clinical findings (e.g., pain = {throbbing, localized to (0,0,0)}, Tender on percussion).
Patient Data as Sets
Encode symptoms (e.g., S = {pain, swelling, fever}).
Pattern Matching
- Compare against disease vectors (e.g., abscess = [1, 1, 0]).
Rank Diagnoses (Bayesian)
- Compute probabilities (e.g., P(abscess|S) = 85%).
Confirm Diagnosis (Symbolic Logic)
- Apply rules (e.g., "IF necrotic pulp AND radiolucency THEN apical periodontitis").
Diagnostic Engine
** - Output**: Diagnosis = irreversible pulpitis.

Phase 2: Treatment Planning¶

Treatment Algorithms (Fixed Protocols)
Execute predefined steps for diagnosed conditions.
Example: RCT Algorithm
1. Anesthetize (target = inferior alveolar nerve @ (2,3,-1)).
2. Access cavity (drill path = (0,1,0)→(0,0,0)).
3. Extirpate pulp (clear zone (0,0,0)).
4. Shape canals (taper = 0.05mm/mm).
5. Obturate (fill volume = πr²h).
6. Restore (crown geometry = offset 1mm from original).

** Optimization (Cost-Benefit Analysis)**
Select the best treatment under constraints.
Example: Caries at (0,2,0) (near pulp)

Option	Success Rate	Cost	Durability	Utility Score (Success × Durability / Cost)
Composite Fill	80%	$	5 years	0.80
Onlay	90%	$$	10 years	0.45
Crown	95%	$$$	15 years	0.32

Optimization Rule:
- Choose option maximizing Utility = (Success × Durability) / Cost.
- Output: Onlay (best trade-off).

adjust the formula or add additional variables (e.g., pain tolerance, insurance coverage)?

Game Theory (Multi-Actor Negotiation)
Balance competing interests.
Example: Implant vs. Bridge
Players:
Patient: Wants cheapest option.
Dentist: Prefers implant (long-term success).
Insurer: Covers only bridge.
Equilibrium:
Agree on bridge (patient accepts, insurer pays, dentist complies).
Fallback: If bone loss >50%, implant becomes medically necessary.

Phase 3: Execution & Feedback¶

Dynamic Adjustment
Intra-op changes:
- If fracture detected at (0,0,2), switch from RCT to extraction.
Reinforcement Learning:
- Update algorithms based on outcomes (e.g., "pulp capping fails if caries depth >3mm").
Post-Treatment Mapping
- Update anatomical coordinates (e.g., post-extraction: (0,0,0) = socket).
- Monitor healing (e.g., bone fill rate at (0,0,1)).

Example Workflow: Periapical Abscess¶

Phase 1. Diagnosis:
** - Disease zone**: (0,0,1) = abscess (via CT scan).
** - Symptoms**: S = {pain, swelling, radiolucency}.
** - Confirmed**: Apical periodontitis (symbolic logic).

Phase 2. Treatment Plan:
- Algorithm: RCT (clear (0,0,0) to (0,0,2)).
- Optimization: RCT (score 0.6) > extraction (score 0.9, but patient declines).
- Game Theory: Patient agrees to RCT after dentist explains long-term benefits.

Phase 3. Outcome:
- 6-month check: Bone regeneration at (0,0,1) = success.

Key Features of geometry treatment:
- Precision: Coordinates guide instrument paths (e.g., implant placement).
- Reproducibility: Like a surgical "API" for clinicians.
Here’s the properly rendered Optimization (Cost-Benefit Analysis) table with clear formatting

anatomy cubes treatment k restoration

body { font-family: Arial, sans-serif; margin: 20px; } .container { display: flex; flex-direction: column; width: 300px; margin: auto; } select, #diagnosis, #suggestion { margin: 10px 0; padding: 8px; font-size: 16px; } #diagnosis { font-weight: bold; } #suggestion { color: red; } #locationBox { display: none; }

Dental Diagnosis Tool

Appearance: Pain (P): TOP (T): vestibular tenderness (VT):

Location:

State	Control Parameters	Clinical Manifestation
Healthy Pulp	\(\gamma < \beta\delta/\epsilon\)	No pain, normal response.
Reversible Pulpitis	\(\gamma \approx \beta\delta/\epsilon\)	Transient pain to stimuli.
Acute Pulpitis	\(\gamma > \beta\delta/\epsilon\)	Spontaneous, severe pain (unstable).
Necrosis	\(x(t) \geq x_{\text{max}}\)	No pain, infection spreads.
